Guided Die Stock, for straight threads,    Harold Hall

Unless you have a larger than average lathe you will have probably encountered problems cutting thread sizes in the order of M8 and larger using a normal threading die. By larger than average I mean anything larger than 100mm bed to centre height.



The problems are twofold, first, the torque required to cut the thread using a die will be more than the three-jaw chuck can withstand and the part will rotate in the chuck's jaws. A four-jaw though will have more chance as its grip is greater. Of greater significance is that, with the torque required, turning the tailstock die holder in the limited confines of the bed/ saddle/ tailstock will be almost impossible, and at best very uncomfortable.



Therefore, when requiring these larger threads, there are but two options, one to screw cut the thread on the lathe, or alternatively, to move the part to the vice and make the thread using the die in a diestock. Perhaps there is a third option and that is a combination of the two, partially screw cut the thread and finish off using a die.



If a die of the required size is available this would seem the easy and quicker method as screw cutting it would be a relatively slow process. This would be particularly so if the lathe does not have a screw cutting gearbox and changewheels have to be set up.



Accurately starting the thread with the part in the vice can though be a problem and if the thread is on the long side it is likely to wander becoming worse the longer the thread. In an attempt to live with the problems of chuck grip and torque required, I have tried starting the first few threads on the lathe followed by the diestock and the part held in the vice. Even with this method I have found that the tendency to wander is still a problem.



If the thread being cut is just a piece of studding for use as a clamping stud on the milling machine then the wandering thread can probably be tolerated albeit not visually very pretty. However, it was when attempting to use an M10 thread for a leadscrew that I realised that it was either a screw cut job or I had to make a guided die holder. As my lathe is an imperial one screw cutting the thread was ruled out and I set about making this guided die holder.

Metalworking

Workshop Projects

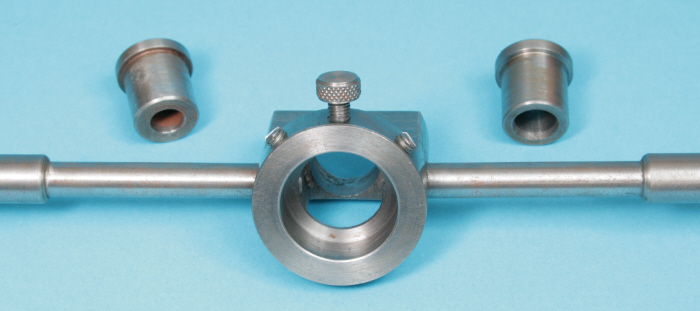

Die Stock, guided.
