Lathe Saddle Stop Setups.    Harold Hall

Saddle Stop, lathe

 1

All pictures can be clicked on to provide a larger view

The saddle stop being used in these examples is a very simple one but adequate for the majority of tasks.

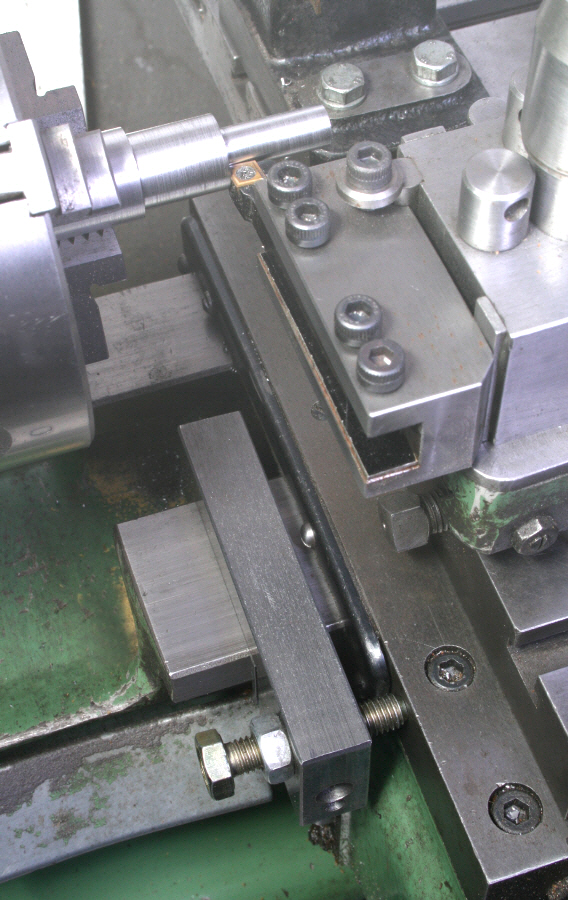

With this type  there are two  methods of working. Distance gauges, of some form, are held between the stop and the saddle by using the saddle feed handle to apply sufficient pressure to hold it there, Photo 1.

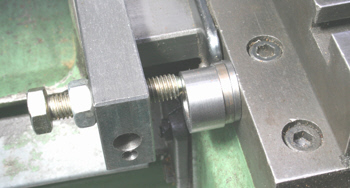

With that done, the cutter is brought up to the appropriate face using the top slide. Photo 2. Then, the gauges are removed allowing the saddle to traverse by the gauges thickness. To set the depth of the bore about to be made in this case. In Photo 3 it would be to set the length of the reduced diameter being turned.



The alternative method, which does not use gauges, is to wind the top slide well back and bring the saddle up to the stop using the saddle’s feed handle. Then, using the top slide, bring the cutter up to the end of the part being turned and zero the slides dial. The saddle is then moved away from the stop and the top slide traversed by the required amount. In photograph 2 that would be the depth of the bore and the length of the reduced diameter in  photograph 3.



The stop in Photo 4 is being used to prevent the boring tool from contacting the faceplate when boring a hole in the workpiece.



With the saddle firmly against the stop the top slide is used to bring the boring tool almost up to the face of the faceplate.. The red card under the workpiece permits the tool to just break through and complete the bore.

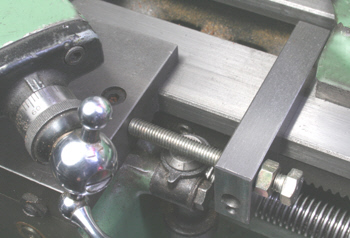

Some saddle stops will only work with the saddle moving right to left but the stop shown will work both ways, Photo 5 and Photo 6.  LINK

Saddle Stop, lathe
Saddle Stop, lathe
Saddle Stop, lathe

 2


 3


 4

Saddle Stop, lathe

 5

Saddle Stop, lathe

 6
