Heavy duty helping hand

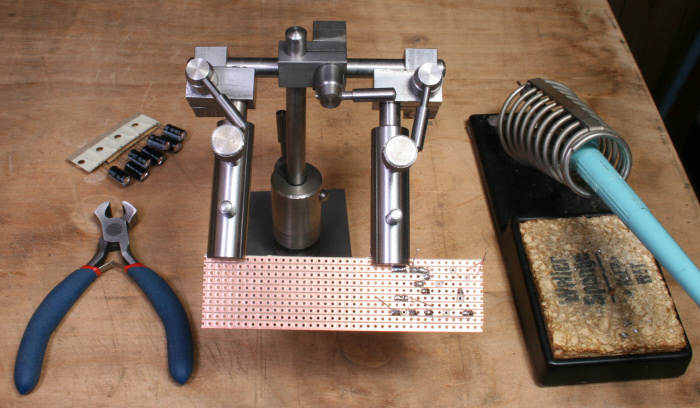

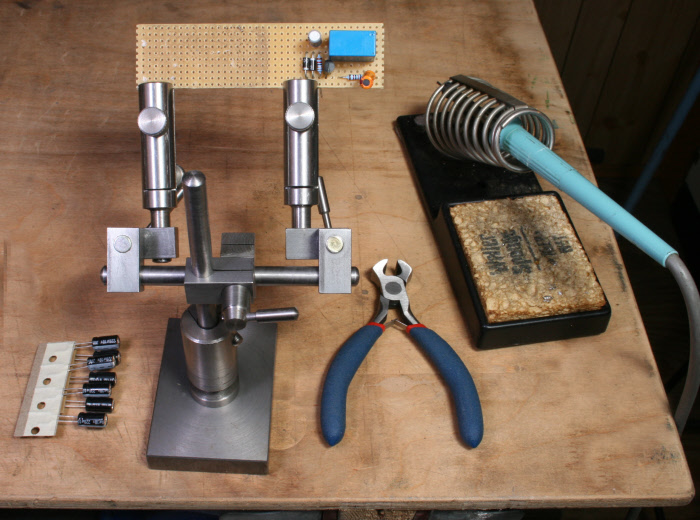

This is shown in Photograph 15 holding a small PCB to enable the components to be placed and then with it swung down, Photograph 16, the board is positioned so that the leads can easily be soldered. If there was a need to hold two parts together whilst they were being soldered then each one could be held in a clamp with these being positioned to bring the parts together for soldering or brazing. A magnifying glass could easily be incorporated making it a heavy duty version of that commercially available.



Use on the Faceplate assembly and balancing fixture.

Photograph 17 shows the system on the faceplate balancing fixture being used in the assembly mode.

Metalworking

Workshop Projects

Dial Test Indicator accesories, holders. Other uses, helping hand
Dial Test Indicator accesories, holders. Other uses, helping hand
Dial Test Indicator accesories, holders



Detail Drawings for all the parts together with some guidance in their manufacture are published in my book, Model Engineers' Workshop Projects, number 39 in the Workshop Practice Series

Model Engineers' Workshop Projects, WPS 39, Harold Hall
