Low Profile Workpiece Clamps, Setups.    Harold Hall

Low Profile Clamps, Edge Clamps, flat clamps
Low Profile Clamps, Edge Clamps, flat clamps

 1


 2

Low Profile Clamps, Edge Clamps, flat clamps
Low Profile Clamps, Edge Clamps, flat clamps

 3


 4

Low Profile Clamps, Edge Clamps, flat clamps
Low Profile Clamps, Edge Clamps, flat clamps

 5


 6

Low Profile Clamps, Edge Clamps, flat clamps
Low Profile Clamps, Edge Clamps, flat clamps

 7


 8

High Profile Clamps, Edge Clamps, flat clamps
High Profile Clamps, Edge Clamps, flat clamps

 9


10

All pictures can be clicked on to provide a larger view

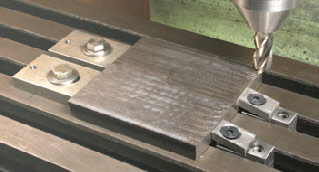

Quite often a task will need the upper surface to be completely machined preventing the more normal overhead clamps being used. In this case, if too large for the machine vice, low profile end clamps will be needed for the task. Photos 1 and 2 show typical examples.



Both clamps additionally provide  a degree of downward force and are from the five designs of low profile clamps which I have produced.

LINK



Photo 3 shows a commercial clamp which works with the head of the screw being off centre providing a cam action. This is probably more apparent in Photo 4. The advantage of this design is that it does not just work in line with the tee slot but at any angle.



Photo 5 shows my own version where it is working at right angle to the tee slot.



Photo 6 shows a block being machined to the required thickness, a task that would appear an obvious one for the milling vice. However, the thickness was important as it is one of six being made for two sets of soft jaws I was making. The method bypassed any error in the vice and the effect of jaw lift.



The clamps in photographs 5 and 6 are two more from my five designs.



The setup was then used to machine the channels down either side. As accuracy was vital the fixed jaw was set using a dial test indicator rather than a square off the front edge of the table.



Photo 7 is a very simple design of mine just using grub screws to secure the part. Photo 8 is similar but has pressure pads to avoid the screws marking the workpiece. Both clamps have the advantage that they can be used at any angle. LINK

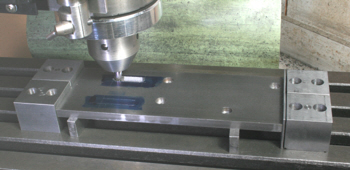

Photos 9 shows what I call high profile clamps as they are a development on the clamps seen in photograph 6. They are particularly useful for workpieces too large for the vice but can also be used for smaller items as seen in Photo 10.
