Slitting Saw, Setups .   Harold Hall

Slitting saw. On the lathe
Slitting saw. On the lathe

 7


 8

Slitting saw. Milling machine
Slitting saw. Milling machine

 1


 2

Slitting saw. Milling machine

 3

Slitting saw. On the lathe
Slitting saw. On the lathe

 5


 6

All pictures can be clicked on to provide a larger view



When using slitting saws there are a few things that can easily be overlooked.



Keep the speed down, it is so easy to think that it is working well only to find too late that due to the very small amount of metal to absorb the heat that it has overheated and the cutting edges have been destroyed. This especially with thin saws, say 2mm and less.



Try to avoid cutting deep slits with thin saws as they can easily flex resulting in a slit that wanders. If you have no option, increase the depth gradually using multiple passes. Perhaps even starting with a smaller diameter saw.



The angle plate in Photo 1 has two purposes, to set the part vertical in the first instance and to provide extra support to prevent the relatively wide saw forcing the part out of the end of the vice. Similarly, Photo 2.



Only a single slot was needed in Photo 3 but by using the spin indexer which can also use ER collets I was able to use my square collet jaws in a round collet to hold the square material.



Photo 4 really needs no comment

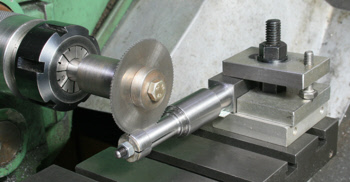

I actually find myself using the slitting saw more on the lathe than on the milling machine as I like working with the saw faces horizontal. The setups in Photos 5, 6 and 7 are examples and need not comment.



Also, Photo 8 and 9 are quite simple in terms of cutting the slit, only the method of mounting the workpiece worth commenting on. The collets being made are held on square support pieces enabling them to be easily rotated through 90 degrees for each slit made. LINK


 9
