Stuart 10V steam engine machining

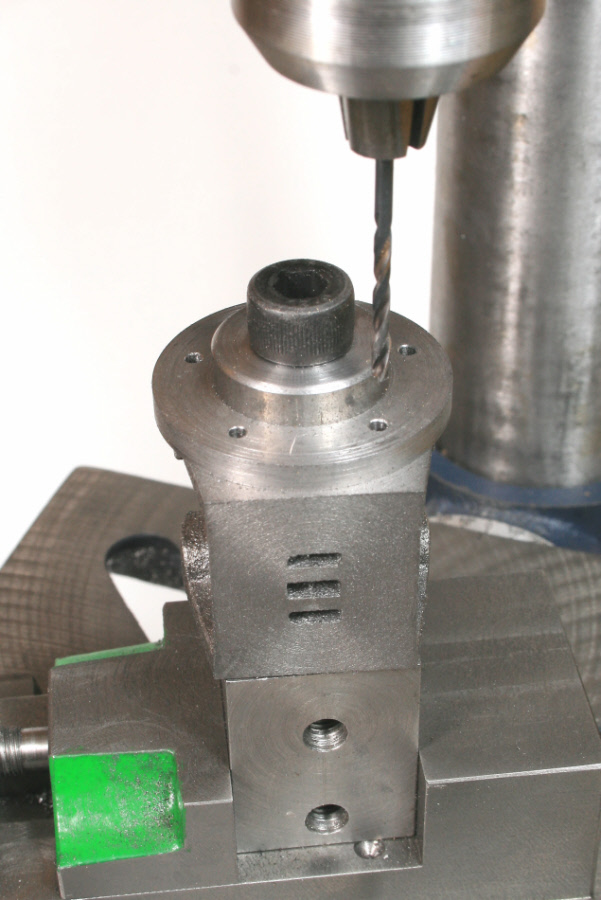

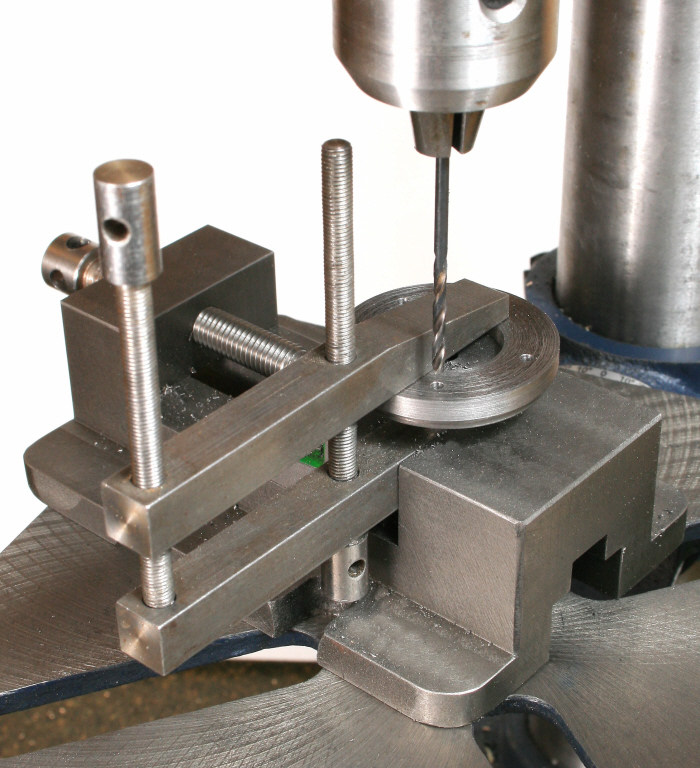

Enlarge the punch marks using a hand held punch and drill 2.1mm, being tapping drill size for 7BA. This can now be used as a drilling jig for both cylinder covers, Photograph 25, also, together with fixture 2 and the dual purpose 3/4” hole gauge, for both ends of the cylinder, Photograph 26. DO NOTE that a pair of holes are parallel to the flat face of the cylinder.

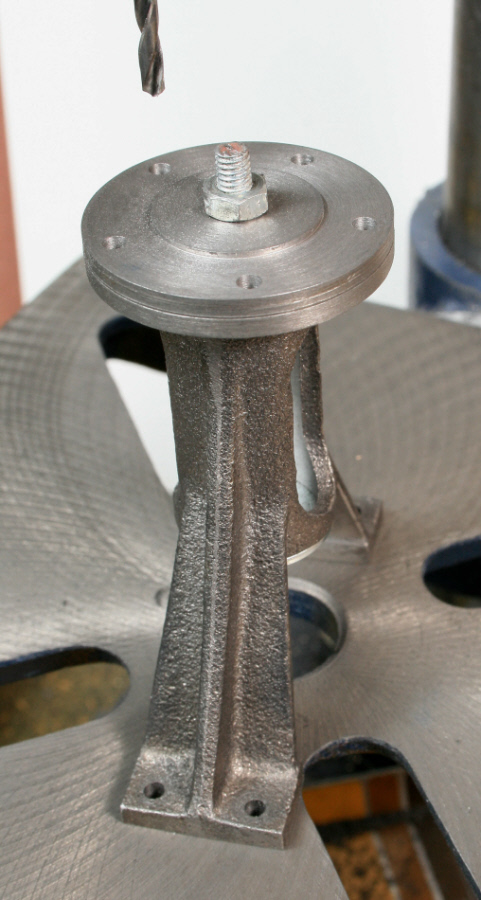

Open up the holes in part 15 to 7BA clearance, for part 6 though the operation is different. In this case, locate the 5/8” boss in the standard and clamp in place using a long screw and drill both parts clearance for 7BA Photograph 27. Again, the position of the holes is important with one pair of holes being parallel to the standard's feet.



If eventually you can assemble these parts in any one of the five positions you have done well but do not be surprised if you have to find the position where all five holes line up. Whilst not perfect it will be visually acceptable.



For the cylinder this just leaves the 8BA tapped holes that will be made later.



Valve Chest Cover 28

For this you will need a small non slotted faceplate but if one is not available then a piece of steel placed in the three jaw chuck and faced will do equally well.

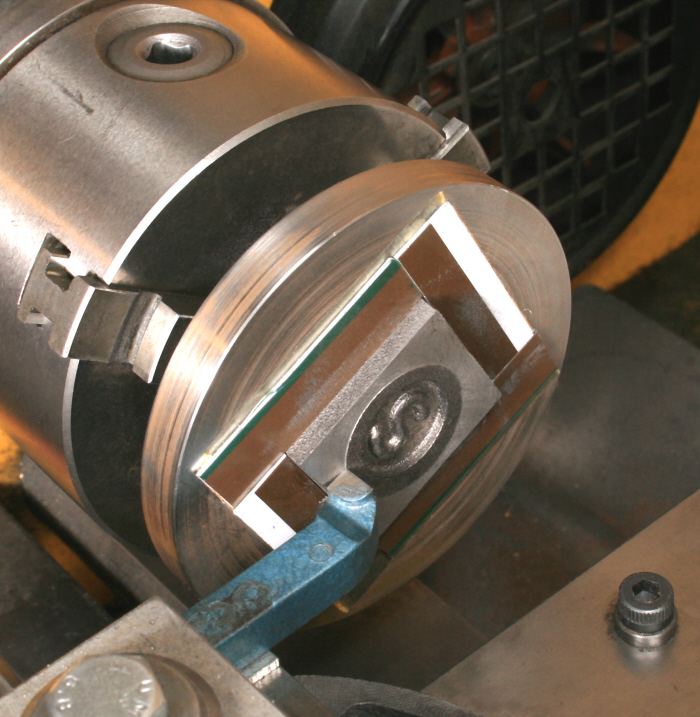

Using a piece of emery cloth, say 180 grit, on a flat surface lap the rear of the cover to remove any high spots and achieve a reasonably flat surface. Do not expect to remove the surface completely, only to remove the high points. With that done cover a suitable area of the faceplate with thin film double adhesive and place the rear side of the cover on this, using the front end of the tailstock barrel to apply some pressure. For added support add some strips around its edges, then machine the first side, Photograph 28. Having completed the first side, carefully prise  the cover from the faceplate, reverse and refit, again using the tailstock to provide pressure and then machine the second side.



If you are apprehensive regarding the method you may be reassured by the fact that I was machining  two covers, one of which I replaced as it was a little too thick, making a total of five sides being machined, all completed without a problem. This, even though the adhesive was looking very dirty by the time the fifth was placed. Finishing the edges and drilling the holes will be carried out later.

Stuart 10V steam engine machining
Stuart 10V steam engine machining

25


27


28

Tip

If you wish to make a permanent faceplate do not turn if from the solid as this will be wasteful in both time and money. Turn a disk and bore say 16mm diameter and chamfer the bore's edge. Make a spigot, say 20mm diameter with a 16mm extension to fit the bore and firmly rivet in place. Mount in the three jaw chuck and finally machine the faceplate's surface and you then have one that can be kept for future use.


10

/

27
