Piston Rod 5

Crosshead Pin 52

Valve Rod 21

These are relatively simple turned parts, all made from 1/8” diameter steel. The threads should be made using a tailstock die holder, rather than a hand held die stock, as they must be axially in line. Concentricity is also important and it would be best to use the four jaw chuck so that the material can be set to run true, especially for the piston rod.



The drawing for the crosshead pin does not show that the end requires a slot to take a screwdriver, a requirement that you will soon find out when you come to assemble the engine. This can be achieved with a hand held hack saw but this rarely works for me, appearance wise, and I would suggest you mount the pin on the lathe top slide and make the slot using a slitting saw. To position the saw centrally, touch the side of the part with the side of the saw, then move the part forward using the cross slide. Then, move it sideways by half the saws width plus half the parts diameter and make the saw cut.



Crosshead 9

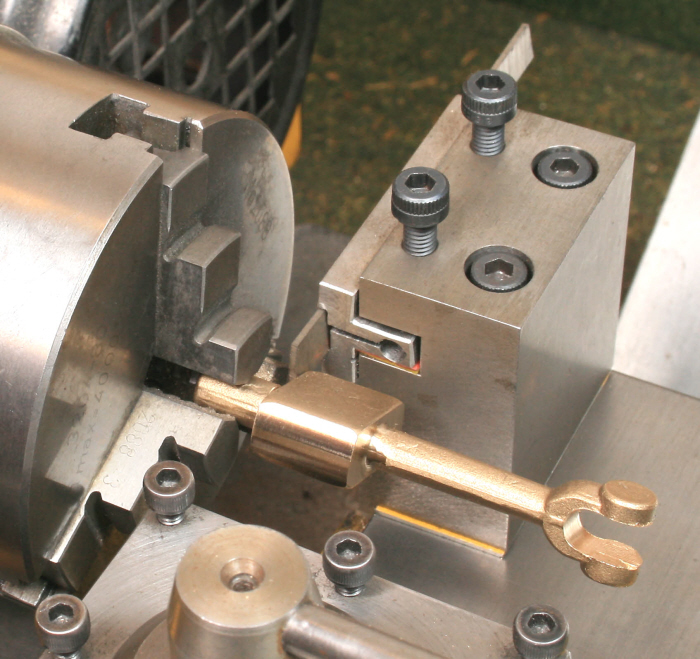

This is provided with a stub, rather like the con rod, see photograph 44, which can be held in the three jaw for machining. Machine the outer diameter which needs to be a close fit in the standard, face the end, drill and tap 5BA, and part off at just over 7/16” long.



Assemble with the piston rod and holding the rod in the three jaw with the crosshead firmly against the chuck's jaws carefully face the outer end to 7/16” long.  Mark out and drill the 5/32” hole.



Piston 4

Mount the piece of 7/8” brass in the three jaw and turn the outer diameter to a close fit in the Cylinder. Face the end and drill and tap 5BA, make the oil groves with a pointed tool and part off at a little over 1/4”. Assemble with the Piston Rod, place the rod in the three jaw and with the piston against the chuck jaws face to 1/4” long.



Piston Gland 8

Turn the outer diameter, make the thread, drill 5/32” and part off. Note the substantial chamfer into the drilled hole, do this using the centre drill deeper than normal.



The part now needs six recesses made around its circumference, fortunately, much easier that the five required with the cylinder. With a short length of hexagonal material in the three jaw, face the end and drill and tap 5/16 x 26TPI, remove, fit the gland and mount on the top slide with a fence for guidance, the fence is just visible in Photograph 57. Add packing below the hexagon to bring the gland up to nominally centre height and with a 1/16” end mill running at the highest available speed make the recesses, using the hexagon to index the part for each one.



The fence is held secure with a nut on the top slide stud prior to the clamp being added and therefore remains in place for each of the slots being made.

Stuart 10V steam engine machining

Tip

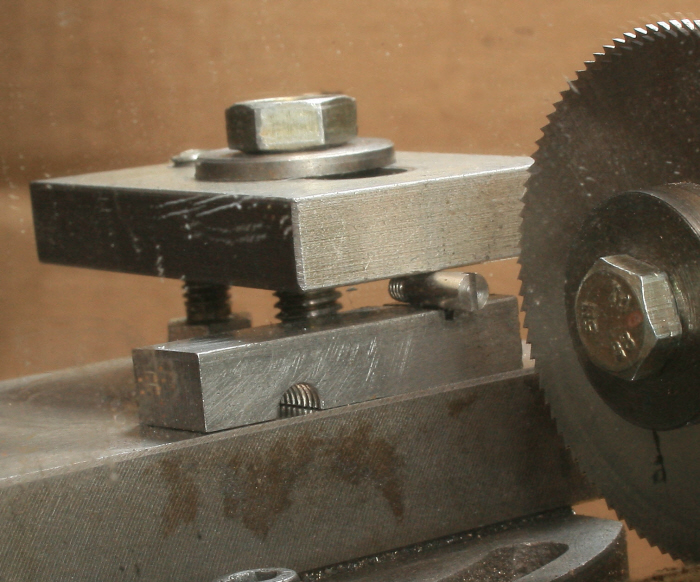

Holding and positioning such small parts can be a problem but the following will make the process easy for this part. Take a piece of steel about 1/2” wide and 1/4” deep  and place a saw cut across this about 1/16” deep, the part will then easily sit on this slit whilst being positioned and clamped. It can then  be slotted using a slitting saw, Photograph 56 (as from the rear of the lathe)

Stuart 10V steam engine machining

57


56


17

/

27
